Ductile Infinite Chilled Hard Cast Iron Rolls (SG)

Home / Product / Cast Iron Roll / Ductile Infinite Chilled Hard Cast Iron Rolls (SG) / Ductile Infinite Chilled Hard Cast Iron Rolls IV (SGIV) for Bar Mill
  • Ductile Infinite Chilled Hard Cast Iron Rolls IV (SGIV) for Bar Mill
  • Ductile Infinite Chilled Hard Cast Iron Rolls IV (SGIV) for Bar Mill
  • Ductile Infinite Chilled Hard Cast Iron Rolls IV (SGIV) for Bar Mill
  • Ductile Infinite Chilled Hard Cast Iron Rolls IV (SGIV) for Bar Mill

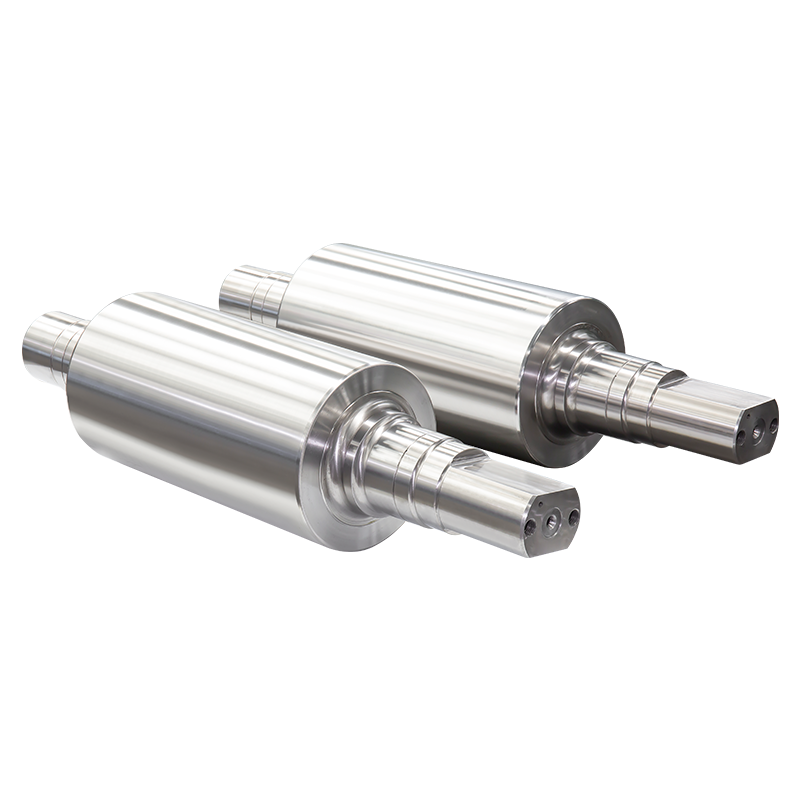

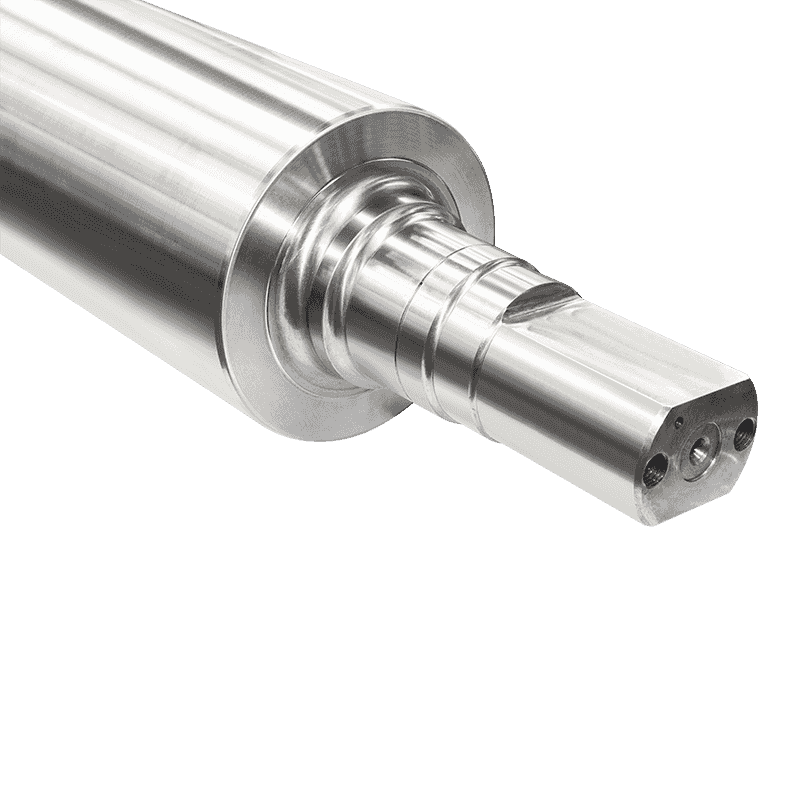

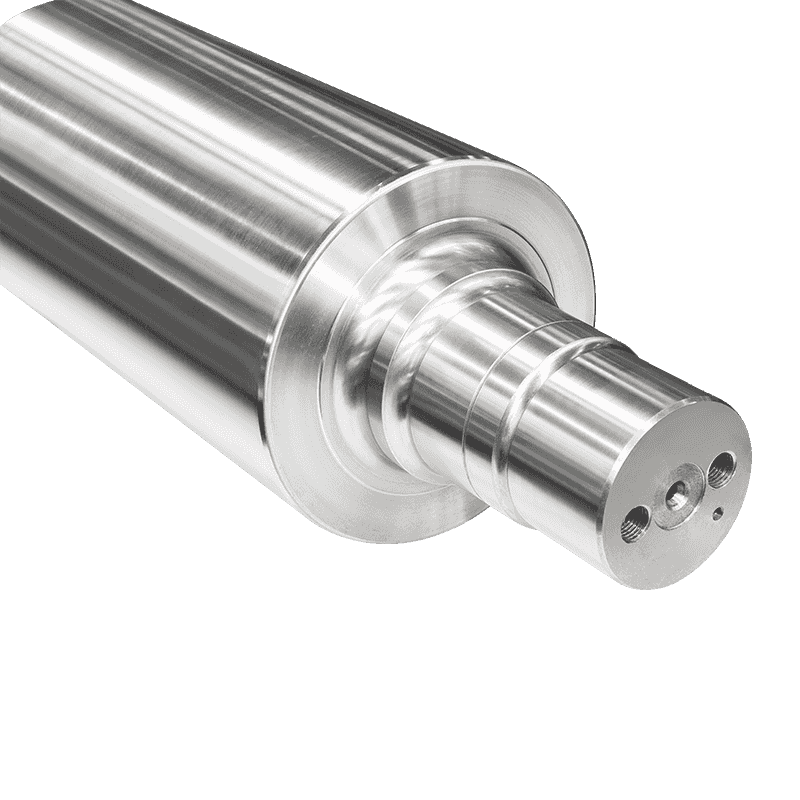

Ductile Infinite Chilled Hard Cast Iron Rolls IV (SGIV) for Bar Mill

Ductile infinitely chilled cast iron has good wear resistance and heat resistance and is suitable for rolling environments under high temperatures and high pressure. The ductile graphite structure of ductile iron can provide a certain degree of toughness, which helps the roll not easily break when under pressure. It has good cooling and hardening properties, can quickly dissipate heat during the rolling process, and maintains the hardness and shape stability of the roll, thereby ensuring the dimensional accuracy of the rolled products. SGIV rolls can withstand the wear of metal blanks under high-speed friction, extending the service life of the rolls. SGIV rollers are suitable for bar rolling mills and can meet the rolling needs of metal bars of different diameters and materials, including ordinary carbon steel, alloy steel, etc. SGIV rolls can improve the production efficiency and product quality of the rolling mill, and reduce downtime during the production process and the frequency of roll replacement, thereby reducing production costs.

Hardness HSD: 55-70
Nickel composition %: 0.5-1.0
Suitable for racks: Roughing
Usage: Roughing and intermediate stands of bar and wire mills, section mills

Inquiry Us
  • Ductile Infinite Chilled Hard Cast Iron Rolls IV (SGIV) for Bar Mill
  • Ductile Infinite Chilled Hard Cast Iron Rolls IV (SGIV) for Bar Mill
  • Ductile Infinite Chilled Hard Cast Iron Rolls IV (SGIV) for Bar Mill
  • Ductile Infinite Chilled Hard Cast Iron Rolls IV (SGIV) for Bar Mill
PREV：Ductile Infinite Chilled Hard Cast Iron Rolls V (SGV) for Section Mill
NEXT：No next article

Performance Parameter

Alloy Nodular Cast Iron Rolls (SG)

Chemical Composition %
Symbol C Si Mn P S Cr Ni Mo Mg
SGⅣ 2.90-3.60 0.80-2.50 0.40-1.20 ≤0.25 ≤0.03 0.20-0.60 0.50-1.00 0.20-0.80 ≥0.04
SGⅤ 2.90-3.60 0.80-2.50 0.40-1.20 ≤0.20 ≤0.03 0.30-1.20 1.01-2.00 0.20-0.80 ≥0.04



Prosperities & Application
Symbol Hardness Tensile Strength Dimension Application
HSD MPa  MM
SGⅣ 55-70 ≥320 ￠300-1300 Roughing and intermediate stands of bar and wire mills, section mills
SGⅤ 60-70 ≥320
