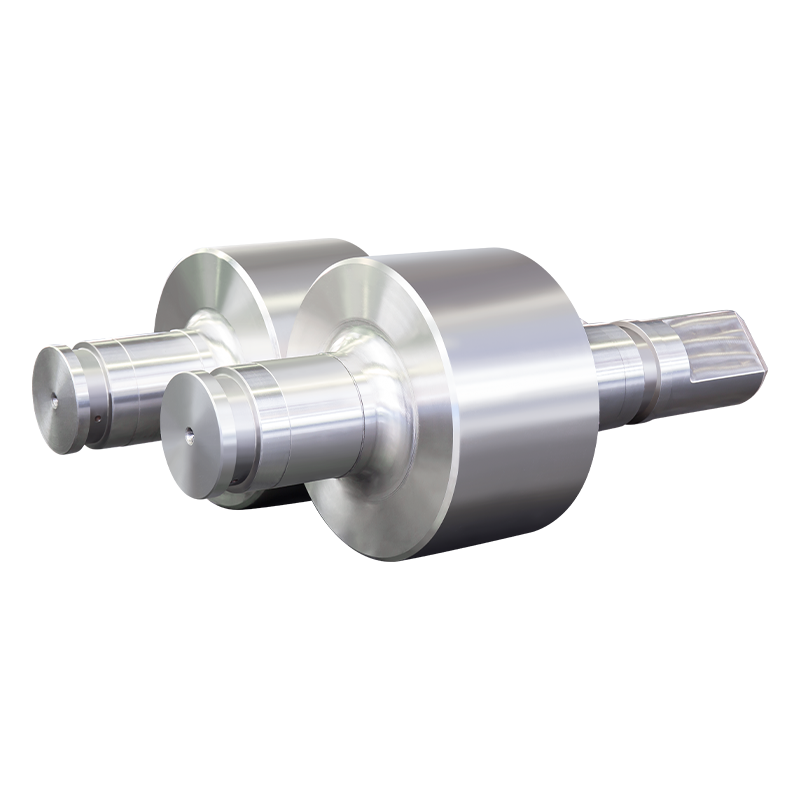

Ductile Infinite Chilled Hard Cast Iron Rolls V (SGV) for Section Mill

Ductile iron infinitely chilled Hard cast iron roll V (SGV) is suitable for section steel rolling mills and can meet the rolling needs of section steels of different sizes and materials, including angle steel, I-beam, channel steel, etc. SGV rolls can improve the production efficiency of the rolling mill, and reduce downtime during the production process and the frequency of roll replacement, thereby reducing production costs. The rollers are precision machined to ensure that the rolled steel products have high-quality surface finish and dimensional accuracy. Compared with some more expensive roll materials, ductile iron rolls have lower manufacturing costs, but their performance can still meet the requirements of section steel rolling mills and are cost-effective. Ductile iron infinitely chilled cast iron rollers V (SGV) play an important role in profile rolling mills and are widely used in the metal processing industry due to their wear resistance, chilling properties, a wide range of applications, and improved production efficiency.

Hardness HSD: 60-70
Nickel composition %: 1.01-2.0
Suitable for racks: Chinese steel rolling
Usage: Intermediate stands of section mills, bar mills, and wire mills.

Inquiry Us
  • Ductile Infinite Chilled Hard Cast Iron Rolls V (SGV) for Section Mill
  • Ductile Infinite Chilled Hard Cast Iron Rolls V (SGV) for Section Mill
  • Ductile Infinite Chilled Hard Cast Iron Rolls V (SGV) for Section Mill
  • Ductile Infinite Chilled Hard Cast Iron Rolls V (SGV) for Section Mill
PREV：No previous article
NEXT：Ductile Infinite Chilled Hard Cast Iron Rolls IV (SGIV) for Bar Mill

Performance Parameter

Alloy Nodular Cast Iron Rolls (SG)

Chemical Composition %
Symbol C Si Mn P S Cr Ni Mo Mg
SGⅣ 2.90-3.60 0.80-2.50 0.40-1.20 ≤0.25 ≤0.03 0.20-0.60 0.50-1.00 0.20-0.80 ≥0.04
SGⅤ 2.90-3.60 0.80-2.50 0.40-1.20 ≤0.20 ≤0.03 0.30-1.20 1.01-2.00 0.20-0.80 ≥0.04



Prosperities & Application
Symbol Hardness Tensile Strength Dimension Application
HSD MPa  MM
SGⅣ 55-70 ≥320 ￠300-1300 Intermediate stands of section mills,bar mills and wire mills.
SGⅤ 60-70 ≥320
