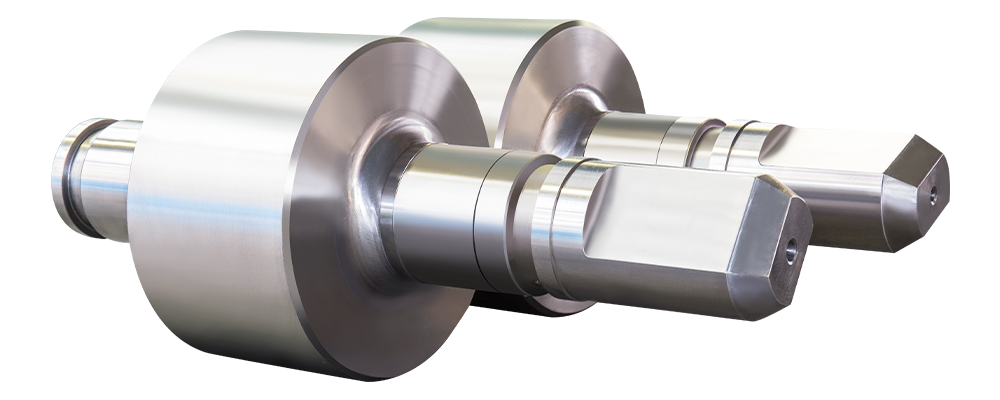

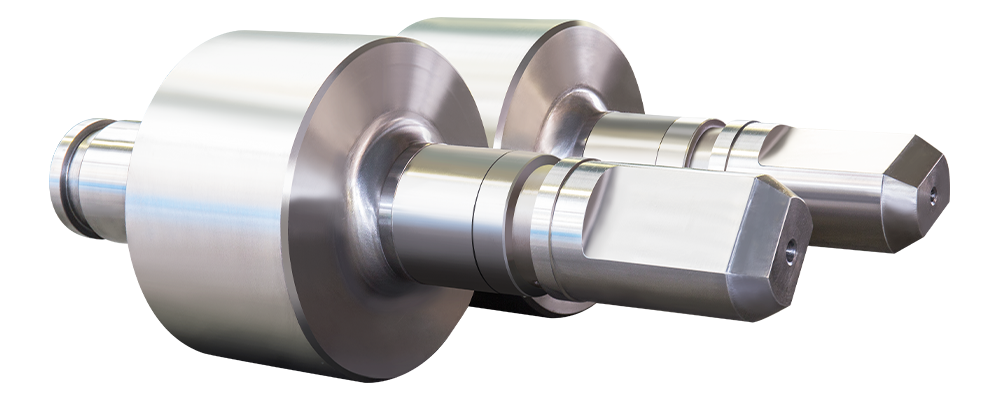

Graphite Steel Rolls Grade 150 (GS150) for Section Mill

Graphite steel roll for profile mills 150 is a roll made of graphite steel suitable for finishing and cold rolling in profile mills. Excellent wear resistance, which can extend the service life of the roll and reduce production costs. It can withstand shock and vibration under high temperature and pressure and is not prone to thermal cracks and breakage. It has good dimensional stability and is not easy to deform, ensuring the accuracy and quality of rolled products. It has good thermal conductivity, can quickly dissipate heat, reduce thermal deformation of the rollers, and improve the quality of rolled products. Used for rolling high-strength, high-precision steel sections. Higher dimensional accuracy ensures the quality of profile products.

Hardness HSD: 40-50
Nickel composition %: 0.2-1.0
Suitable for racks: roughing
Usage: Section mills, bar and wire mills; blooming mills; hot strip roughing rolls and edger rolls; section universal mills.

Inquiry Us
  • Graphite Steel Rolls Grade 150 (GS150) for Section Mill
  • Graphite Steel Rolls Grade 150 (GS150) for Section Mill
  • Graphite Steel Rolls Grade 150 (GS150) for Section Mill
  • Graphite Steel Rolls Grade 150 (GS150) for Section Mill
PREV：Graphite Steel Rolls Grade 160 (GS160) for Roughing Mill
NEXT：No next article

Performance Parameter

Graphite Steel Roll (GS)

 Chemical Composition %
Symbol C Si Mn Cr Ni Mo P S
GS150 1.40-1.60 1.00-1.70 0.60-1.00 0.60-1.00 0.20-1.00 0.20-0.50 ≤0.035 ≤0.030
GS160 1.50-1.70 0.80-1.50 0.60-1.00 0.50-1.50 0.20-1.00 0.20-0.80 ≤0.035 ≤0.030
GS190 1.80-2.00 0.80-1.50 0.60-1.00 0.50-2.00 0.60-2.20 0.20-0.80 ≤0.035 ≤0.030



Prosperities & Application
Symbol Hardness Dimension Application
HSD MM
GS150 40-50 ￠400-1400 Section mills, bar and wire mills; blooming mills; hot strip roughing rolls and edger rolls; and section universal mills.
GS160 45-55
GS190 50-60;55-65
